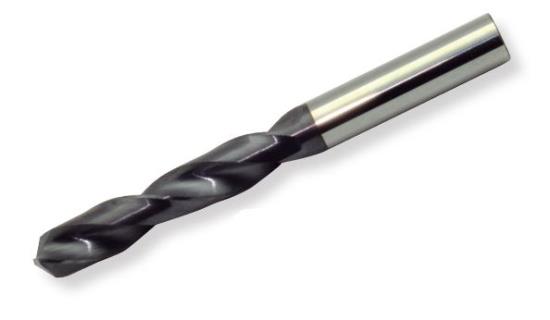

Broca DIN 6537 MDI 3xD
Broca DIN 6537 MDI 3xD
| Ø (mm) | L1 (mm) | L2 (mm) | D2 | Uds. | COD. ARTICULO |
|---|---|---|---|---|---|
| 3,00 | 62 | 20 | 6 | 1 | 33XMD0300 |
| 3,10 | 62 | 20 | 6 | 1 | 33XMD0310 |
| 3,20 | 62 | 20 | 6 | 1 | 33XMD0320 |
| 3,30 | 62 | 20 | 6 | 1 | 33XMD0330 |
| 3,40 | 62 | 20 | 6 | 1 | 33XMD0340 |
| 3,50 | 62 | 20 | 6 | 1 | 33XMD0350 |
| 3,60 | 62 | 20 | 6 | 1 | 33XMD0360 |
| 3,70 | 62 | 20 | 6 | 1 | 33XMD0370 |
| 3,80 | 66 | 24 | 6 | 1 | 33XMD0380 |
| 3,90 | 66 | 24 | 6 | 1 | 33XMD0390 |
| 4,00 | 66 | 24 | 6 | 1 | 33XMD0400 |
| 4,10 | 66 | 24 | 6 | 1 | 33XMD0410 |
| 4,20 | 66 | 24 | 6 | 1 | 33XMD0420 |
| 4,30 | 66 | 24 | 6 | 1 | 33XMD0430 |
| 4,40 | 66 | 24 | 6 | 1 | 33XMD0440 |
| 4,50 | 66 | 24 | 6 | 1 | 33XMD0450 |
| 4,60 | 66 | 24 | 6 | 1 | 33XMD0460 |
| 4,70 | 66 | 24 | 6 | 1 | 33XMD0470 |
| 4,80 | 66 | 28 | 6 | 1 | 33XMD0480 |
| 4,90 | 66 | 28 | 6 | 1 | 33XMD0490 |
| 5,00 | 66 | 28 | 6 | 1 | 33XMD0500 |
| 5,10 | 66 | 28 | 6 | 1 | 33XMD0510 |
| 5,20 | 66 | 28 | 6 | 1 | 33XMD0520 |
| 5,30 | 66 | 28 | 6 | 1 | 33XMD0530 |
| 5,40 | 66 | 28 | 6 | 1 | 33XMD0540 |
| 5,50 | 66 | 28 | 6 | 1 | 33XMD0550 |
| 5,60 | 66 | 28 | 6 | 1 | 33XMD0560 |
| 5,70 | 66 | 28 | 6 | 1 | 33XMD0570 |
| 5,80 | 66 | 28 | 6 | 1 | 33XMD0580 |
| 5,90 | 66 | 28 | 6 | 1 | 33XMD0590 |
| 6,00 | 66 | 28 | 6 | 1 | 33XMD0600 |
| 6,10 | 79 | 34 | 8 | 1 | 33XMD0610 |
| 6,20 | 79 | 34 | 8 | 1 | 33XMD0620 |
| 6,30 | 79 | 34 | 8 | 1 | 33XMD0630 |
| 6,40 | 79 | 34 | 8 | 1 | 33XMD0640 |
| 6,50 | 79 | 34 | 8 | 1 | 33XMD0650 |
| 6,60 | 79 | 34 | 8 | 1 | 33XMD0660 |
| 6,70 | 79 | 34 | 8 | 1 | 33XMD0670 |
| 6,80 | 79 | 34 | 8 | 1 | 33XMD0680 |
| 6,90 | 79 | 34 | 8 | 1 | 33XMD0690 |
| 7,00 | 79 | 34 | 8 | 1 | 33XMD0700 |
| 7,10 | 79 | 41 | 8 | 1 | 33XMD0710 |
| 7,20 | 79 | 41 | 8 | 1 | 33XMD0720 |
| 7,30 | 79 | 41 | 8 | 1 | 33XMD0730 |
| 7,40 | 79 | 41 | 8 | 1 | 33XMD0740 |
| 7,50 | 79 | 41 | 8 | 1 | 33XMD0750 |
| 7,60 | 79 | 41 | 8 | 1 | 33XMD0760 |
| 7,70 | 79 | 41 | 8 | 1 | 33XMD0770 |
| 7,80 | 79 | 41 | 8 | 1 | 33XMD0780 |
| 7,90 | 79 | 41 | 8 | 1 | 33XMD0790 |
| 8,00 | 79 | 41 | 8 | 1 | 33XMD0800 |
| 8,10 | 89 | 47 | 10 | 1 | 33XMD0810 |
| 8,20 | 89 | 47 | 10 | 1 | 33XMD0820 |
| 8,30 | 89 | 47 | 10 | 1 | 33XMD0830 |
| 8,40 | 89 | 47 | 10 | 1 | 33XMD0840 |
| 8,50 | 89 | 47 | 10 | 1 | 33XMD0850 |
| 8,60 | 89 | 47 | 10 | 1 | 33XMD0860 |
| 8,70 | 89 | 47 | 10 | 1 | 33XMD0870 |
| 8,80 | 89 | 47 | 10 | 1 | 33XMD0880 |
| 8,90 | 89 | 47 | 10 | 1 | 33XMD0890 |
| 9,00 | 89 | 47 | 10 | 1 | 33XMD0900 |
| 9,10 | 89 | 47 | 10 | 1 | 33XMD0910 |
| 9,20 | 89 | 47 | 10 | 1 | 33XMD0920 |
| 9,30 | 89 | 47 | 10 | 1 | 33XMD0930 |
| 9,40 | 89 | 47 | 10 | 1 | 33XMD0940 |
| 9,50 | 89 | 47 | 10 | 1 | 33XMD0950 |
| 9,60 | 89 | 47 | 10 | 1 | 33XMD0960 |
| 9,70 | 89 | 47 | 10 | 1 | 33XMD0970 |
| 9,80 | 89 | 47 | 10 | 1 | 33XMD0980 |
| 9,90 | 89 | 47 | 10 | 1 | 33XMD0990 |
| 10,00 | 89 | 47 | 10 | 1 | 33XMD1000 |
| 10,50 | 102 | 55 | 12 | 1 | 33XMD1050 |
| 11,00 | 102 | 55 | 12 | 1 | 33XMD1100 |
| 11,50 | 102 | 55 | 12 | 1 | 33XMD1150 |
| 12,00 | 102 | 55 | 12 | 1 | 33XMD1200 |
| 12,50 | 107 | 60 | 14 | 1 | 33XMD1250 |
| 13,00 | 107 | 60 | 14 | 1 | 33XMD1300 |
| 13,50 | 107 | 60 | 14 | 1 | 33XMD1350 |
| 14,00 | 107 | 60 | 14 | 1 | 33XMD1400 |
| 14,50 | 115 | 65 | 16 | 1 | 33XMD1450 |
| 15,00 | 115 | 65 | 16 | 1 | 33XMD1500 |
| 15,50 | 115 | 65 | 16 | 1 | 33XMD1550 |
| 16,00 | 115 | 65 | 16 | 1 | 33XMD1600 |
| 16,50 | 123 | 73 | 18 | 1 | 33XMD1650 |
| 17,00 | 123 | 73 | 18 | 1 | 33XMD1700 |
| 17,50 | 123 | 73 | 18 | 1 | 33XMD1750 |
| 18,00 | 123 | 73 | 18 | 1 | 33XMD1800 |
| 18,50 | 131 | 79 | 20 | 1 | 33XMD1850 |
| 19,00 | 131 | 79 | 20 | 1 | 33XMD1900 |
| 19,50 | 131 | 79 | 20 | 1 | 33XMD1950 |
| 20,00 | 131 | 79 | 20 | 1 | 33XMD2000 |
