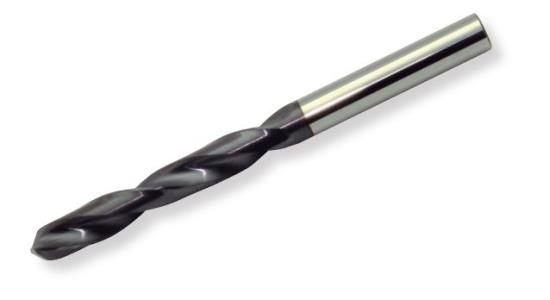

Broca DIN 6537 MDI 5xD
Broca DIN 6537 MDI 5xD
| Ø (mm) | L1 (mm) | L2 (mm) | D2 | Uds. | COD. ARTICULO |
|---|---|---|---|---|---|
| 3,00 | 66 | 28 | 6 | 1 | 35XMD0300 |
| 3,10 | 66 | 28 | 6 | 1 | 35XMD0310 |
| 3,20 | 66 | 28 | 6 | 1 | 35XMD0320 |
| 3,30 | 66 | 28 | 6 | 1 | 35XMD0330 |
| 3,40 | 66 | 28 | 6 | 1 | 35XMD0340 |
| 3,50 | 66 | 28 | 6 | 1 | 35XMD0350 |
| 3,60 | 66 | 28 | 6 | 1 | 35XMD0360 |
| 3,70 | 66 | 28 | 6 | 1 | 35XMD0370 |
| 3,80 | 74 | 36 | 6 | 1 | 35XMD0380 |
| 3,90 | 74 | 36 | 6 | 1 | 35XMD0390 |
| 4,00 | 74 | 36 | 6 | 1 | 35XMD0400 |
| 4,10 | 74 | 36 | 6 | 1 | 35XMD0410 |
| 4,20 | 74 | 36 | 6 | 1 | 35XMD0420 |
| 4,30 | 74 | 36 | 6 | 1 | 35XMD0430 |
| 4,40 | 74 | 36 | 6 | 1 | 35XMD0440 |
| 4,50 | 74 | 36 | 6 | 1 | 35XMD0450 |
| 4,60 | 74 | 36 | 6 | 1 | 35XMD0460 |
| 4,70 | 74 | 36 | 6 | 1 | 35XMD0470 |
| 4,80 | 82 | 44 | 6 | 1 | 35XMD0480 |
| 4,90 | 82 | 44 | 6 | 1 | 35XMD0490 |
| 5,00 | 82 | 44 | 6 | 1 | 35XMD0500 |
| 5,10 | 82 | 44 | 6 | 1 | 35XMD0510 |
| 5,20 | 82 | 44 | 6 | 1 | 35XMD0520 |
| 5,30 | 82 | 44 | 6 | 1 | 35XMD0530 |
| 5,40 | 82 | 44 | 6 | 1 | 35XMD0540 |
| 5,50 | 82 | 44 | 6 | 1 | 35XMD0550 |
| 5,60 | 82 | 44 | 6 | 1 | 35XMD0560 |
| 5,70 | 82 | 44 | 6 | 1 | 35XMD0570 |
| 5,80 | 82 | 44 | 6 | 1 | 35XMD0580 |
| 5,90 | 82 | 44 | 6 | 1 | 35XMD0590 |
| 6,00 | 82 | 44 | 6 | 1 | 35XMD0600 |
| 6,10 | 91 | 53 | 8 | 1 | 35XMD0610 |
| 6,20 | 91 | 53 | 8 | 1 | 35XMD0620 |
| 6,30 | 91 | 53 | 8 | 1 | 35XMD0630 |
| 6,40 | 91 | 53 | 8 | 1 | 35XMD0640 |
| 6,50 | 91 | 53 | 8 | 1 | 35XMD0650 |
| 6,60 | 91 | 53 | 8 | 1 | 35XMD0660 |
| 6,70 | 91 | 53 | 8 | 1 | 35XMD0670 |
| 6,80 | 91 | 53 | 8 | 1 | 35XMD0680 |
| 6,90 | 91 | 53 | 8 | 1 | 35XMD0690 |
| 7,00 | 91 | 53 | 8 | 1 | 35XMD0700 |
| 7,10 | 91 | 53 | 8 | 1 | 35XMD0710 |
| 7,20 | 91 | 53 | 8 | 1 | 35XMD0720 |
| 7,30 | 91 | 53 | 8 | 1 | 35XMD0730 |
| 7,40 | 91 | 53 | 8 | 1 | 35XMD0740 |
| 7,50 | 91 | 53 | 8 | 1 | 35XMD0750 |
| 7,60 | 91 | 53 | 8 | 1 | 35XMD0760 |
| 7,70 | 91 | 53 | 8 | 1 | 35XMD0770 |
| 7,80 | 91 | 53 | 8 | 1 | 35XMD0780 |
| 7,90 | 91 | 53 | 8 | 1 | 35XMD0790 |
| 8,00 | 91 | 53 | 8 | 1 | 35XMD0800 |
| 8,10 | 103 | 61 | 10 | 1 | 35XMD0810 |
| 8,20 | 103 | 61 | 10 | 1 | 35XMD0820 |
| 8,30 | 103 | 61 | 10 | 1 | 35XMD0830 |
| 8,40 | 103 | 61 | 10 | 1 | 35XMD0840 |
| 8,50 | 103 | 61 | 10 | 1 | 35XMD0850 |
| 8,60 | 103 | 61 | 10 | 1 | 35XMD0860 |
| 8,70 | 103 | 61 | 10 | 1 | 35XMD0870 |
| 8,80 | 103 | 61 | 10 | 1 | 35XMD0880 |
| 8,90 | 103 | 61 | 10 | 1 | 35XMD0890 |
| 9,00 | 103 | 61 | 10 | 1 | 35XMD0900 |
| 9,10 | 103 | 61 | 10 | 1 | 35XMD0910 |
| 9,20 | 103 | 61 | 10 | 1 | 35XMD0920 |
| 9,30 | 103 | 61 | 10 | 1 | 35XMD0930 |
| 9,40 | 103 | 61 | 10 | 1 | 35XMD0940 |
| 9,50 | 103 | 61 | 10 | 1 | 35XMD0950 |
| 9,60 | 103 | 61 | 10 | 1 | 35XMD0960 |
| 9,70 | 103 | 61 | 10 | 1 | 35XMD0970 |
| 9,80 | 103 | 61 | 10 | 1 | 35XMD0980 |
| 9,90 | 103 | 61 | 10 | 1 | 35XMD0990 |
| 10,00 | 103 | 61 | 10 | 1 | 35XMD1000 |
| 10,50 | 118 | 71 | 12 | 1 | 35XMD1050 |
| 11,00 | 118 | 71 | 12 | 1 | 35XMD1100 |
| 11,50 | 118 | 71 | 12 | 1 | 35XMD1150 |
| 12,00 | 118 | 71 | 12 | 1 | 35XMD1200 |
| 12,50 | 124 | 77 | 14 | 1 | 35XMD1250 |
| 13,00 | 124 | 77 | 14 | 1 | 35XMD1300 |
| 13,50 | 124 | 77 | 14 | 1 | 35XMD1350 |
| 14,00 | 124 | 77 | 14 | 1 | 35XMD1400 |
| 14,50 | 133 | 83 | 16 | 1 | 35XMD1450 |
| 15,00 | 133 | 83 | 16 | 1 | 35XMD1500 |
| 15,50 | 133 | 83 | 16 | 1 | 35XMD1550 |
| 16,00 | 133 | 83 | 16 | 1 | 35XMD1600 |
