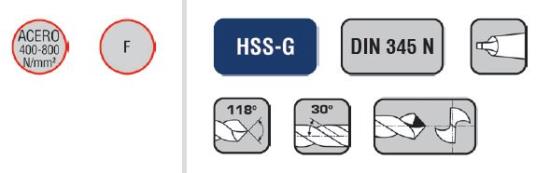

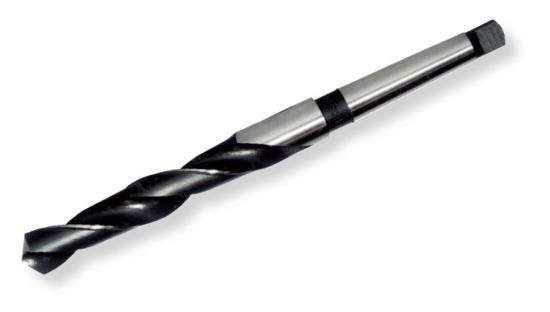

Broca DIN 345N HSS-G

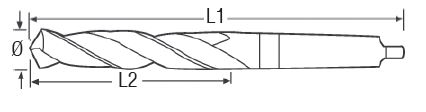

| Ø mm | Cono morse | L1 | L2 | Uds. | Cod. Article |
|---|---|---|---|---|---|
| 4,00 | 1 | 124 | 43 | 1 | 150400 |
| 4,50 | 1 | 128 | 47 | 1 | 150450 |
| 5,00 | 1 | 133 | 52 | 1 | 150500 |
| 5,50 | 1 | 138 | 57 | 1 | 150550 |
| 5,75 | 1 | 138 | 57 | 1 | 150575 |
| 6,00 | 1 | 138 | 57 | 1 | 150600 |
| 6,25 | 1 | 144 | 63 | 1 | 150625 |
| 6,50 | 1 | 144 | 63 | 1 | 150650 |
| 6,75 | 1 | 150 | 69 | 1 | 150675 |
| 7,00 | 1 | 150 | 69 | 1 | 150700 |
| 7,50 | 1 | 150 | 69 | 1 | 150750 |
| 7,75 | 1 | 156 | 75 | 1 | 150775 |
| 8,00 | 1 | 156 | 75 | 1 | 150800 |
| 8,25 | 1 | 156 | 75 | 1 | 150825 |
| 8,50 | 1 | 156 | 75 | 1 | 150850 |
| 8,75 | 1 | 162 | 81 | 1 | 150875 |
| 9,00 | 1 | 162 | 81 | 1 | 150900 |
| 9,50 | 1 | 162 | 81 | 1 | 150950 |
| 9,75 | 1 | 168 | 87 | 1 | 150975 |
| 10,00 | 1 | 168 | 87 | 1 | 151000 |
| 10,25 | 1 | 168 | 87 | 1 | 151025 |
| 10,50 | 1 | 168 | 87 | 1 | 151050 |
| 10,75 | 1 | 175 | 94 | 1 | 151075 |
| 11,00 | 1 | 175 | 94 | 1 | 151100 |
| 11,25 | 1 | 175 | 94 | 1 | 151125 |
| 11,50 | 1 | 175 | 94 | 1 | 151150 |
| 11,75 | 1 | 175 | 94 | 1 | 151175 |
| 12,00 | 1 | 182 | 101 | 1 | 151200 |
| 12,25 | 1 | 182 | 101 | 1 | 151225 |
| 12,50 | 1 | 182 | 101 | 1 | 151250 |
| 12,75 | 1 | 182 | 101 | 1 | 151275 |
| 13,00 | 1 | 182 | 101 | 1 | 151300 |
| 13,25 | 1 | 189 | 108 | 1 | 151325 |
| 13,50 | 1 | 189 | 108 | 1 | 151350 |
| 13,75 | 1 | 189 | 108 | 1 | 151375 |
| 14,00 | 1 | 189 | 108 | 1 | 151400 |
| 14,25 | 2 | 212 | 114 | 1 | 151425 |
| 14,50 | 2 | 212 | 114 | 1 | 151450 |
| 14,75 | 2 | 212 | 114 | 1 | 151475 |
| 15,00 | 2 | 212 | 114 | 1 | 151500 |
| 15,25 | 2 | 218 | 120 | 1 | 151525 |
| 15,50 | 2 | 218 | 120 | 1 | 151550 |
| 15,75 | 2 | 218 | 120 | 1 | 151575 |
| 16,00 | 2 | 218 | 120 | 1 | 151600 |
| 16,25 | 2 | 223 | 125 | 1 | 151625 |
| 16,50 | 2 | 223 | 125 | 1 | 151650 |
| 16,75 | 2 | 223 | 125 | 1 | 151675 |
| 17,00 | 2 | 223 | 125 | 1 | 151700 |
| 17,25 | 2 | 228 | 130 | 1 | 151725 |
| 17,50 | 2 | 228 | 130 | 1 | 151750 |
| 17,75 | 2 | 228 | 130 | 1 | 151775 |
| 18,00 | 2 | 228 | 130 | 1 | 151800 |
| 18,25 | 2 | 233 | 135 | 1 | 151825 |
| 18,50 | 2 | 233 | 135 | 1 | 151850 |
| 18,75 | 2 | 233 | 135 | 1 | 151875 |
| 19,00 | 2 | 233 | 135 | 1 | 151900 |
| 19,25 | 2 | 238 | 140 | 1 | 151925 |
| 19,50 | 2 | 238 | 140 | 1 | 151950 |
| 19,75 | 2 | 238 | 140 | 1 | 151975 |
| 20,00 | 2 | 238 | 140 | 1 | 152000 |
| 20,25 | 2 | 243 | 145 | 1 | 152025 |
| 20,50 | 2 | 243 | 145 | 1 | 152050 |
| 20,75 | 2 | 243 | 145 | 1 | 152075 |
| 21,00 | 2 | 243 | 145 | 1 | 152100 |
| 21,25 | 2 | 248 | 150 | 1 | 152125 |
| 21,50 | 2 | 248 | 150 | 1 | 152150 |
| 21,75 | 2 | 248 | 150 | 1 | 152175 |
| 22,00 | 2 | 248 | 150 | 1 | 152200 |
| 22,25 | 2 | 253 | 155 | 1 | 152225 |
| 22,50 | 2 | 253 | 155 | 1 | 152250 |
| 22,75 | 2 | 253 | 155 | 1 | 152275 |
| 23,00 | 2 | 253 | 155 | 1 | 152300 |
| 23,25 | 3 | 276 | 155 | 1 | 152325 |
| 23,50 | 3 | 276 | 155 | 1 | 152350 |
| 23,75 | 3 | 281 | 160 | 1 | 152375 |
| 24,00 | 3 | 281 | 160 | 1 | 152400 |
| 24,25 | 3 | 281 | 160 | 1 | 152425 |
| 24,50 | 3 | 281 | 160 | 1 | 152450 |
| 24,75 | 3 | 281 | 160 | 1 | 152475 |
| 25,00 | 3 | 281 | 160 | 1 | 152500 |
| 25,25 | 3 | 286 | 165 | 1 | 152525 |
| 25,50 | 3 | 286 | 165 | 1 | 152550 |
| 25,75 | 3 | 286 | 165 | 1 | 152575 |
| 26,00 | 3 | 286 | 165 | 1 | 152600 |
| 26,25 | 3 | 286 | 165 | 1 | 152625 |
| 26,50 | 3 | 286 | 165 | 1 | 152650 |
| 26,75 | 3 | 291 | 170 | 1 | 152675 |
| 27,00 | 3 | 291 | 170 | 1 | 152700 |
| 27,25 | 3 | 291 | 170 | 1 | 152725 |
| 27,50 | 3 | 291 | 170 | 1 | 152750 |
| 27,75 | 3 | 291 | 170 | 1 | 152775 |
| 28,00 | 3 | 291 | 170 | 1 | 152800 |
| 28,25 | 3 | 296 | 175 | 1 | 152825 |
| 28,50 | 3 | 296 | 175 | 1 | 152850 |
| 28,75 | 3 | 296 | 175 | 1 | 152875 |
| 29,00 | 3 | 296 | 175 | 1 | 152900 |
| 29,25 | 3 | 296 | 175 | 1 | 152925 |
| 29,50 | 3 | 296 | 175 | 1 | 152950 |
| 29,75 | 3 | 296 | 175 | 1 | 152975 |
| 30,00 | 3 | 296 | 175 | 1 | 153000 |
| 30,25 | 3 | 301 | 180 | 1 | 153025 |
| 30,50 | 3 | 301 | 180 | 1 | 153050 |
| 30,75 | 3 | 301 | 180 | 1 | 153075 |
| 31,00 | 3 | 301 | 180 | 1 | 153100 |
| 31,25 | 3 | 301 | 180 | 1 | 153125 |
| 31,50 | 3 | 301 | 180 | 1 | 153150 |
| 31,75 | 3 | 306 | 185 | 1 | 153175 |
| 32,00 | 4 | 334 | 185 | 1 | 153200 |
| 32,25 | 4 | 334 | 185 | 1 | 153225 |
| 32,50 | 4 | 334 | 185 | 1 | 153250 |
| 32,75 | 4 | 334 | 185 | 1 | 153275 |
| 33,00 | 4 | 334 | 185 | 1 | 153300 |
| 33,25 | 4 | 334 | 185 | 1 | 153325 |
| 33,50 | 4 | 334 | 185 | 1 | 153350 |
| 33,75 | 4 | 339 | 190 | 1 | 153375 |
| 34,00 | 4 | 339 | 190 | 1 | 153400 |
| 34,25 | 4 | 339 | 190 | 1 | 153425 |
| 34,50 | 4 | 339 | 190 | 1 | 153450 |
| 34,75 | 4 | 339 | 190 | 1 | 153475 |
| 35,00 | 4 | 339 | 190 | 1 | 153500 |
| 35,25 | 4 | 339 | 190 | 1 | 153525 |
| 35,50 | 4 | 339 | 190 | 1 | 153550 |
| 35,75 | 4 | 344 | 195 | 1 | 153575 |
| 36,00 | 4 | 344 | 195 | 1 | 153600 |
| 36,50 | 4 | 344 | 195 | 1 | 153650 |
| 37,00 | 4 | 344 | 195 | 1 | 153700 |
| 37,50 | 4 | 344 | 195 | 1 | 153750 |
| 38,00 | 4 | 349 | 200 | 1 | 153800 |
| 38,50 | 4 | 349 | 200 | 1 | 153850 |
| 39,00 | 4 | 349 | 200 | 1 | 153900 |
| 39,50 | 4 | 349 | 200 | 1 | 153950 |
| 40,00 | 4 | 349 | 200 | 1 | 154000 |
| 40,50 | 4 | 354 | 205 | 1 | 154050 |
| 41,00 | 4 | 354 | 205 | 1 | 154100 |
| 41,50 | 4 | 354 | 205 | 1 | 154150 |
| 42,00 | 4 | 354 | 205 | 1 | 154200 |
| 42,50 | 4 | 354 | 205 | 1 | 154250 |
| 43,00 | 4 | 359 | 210 | 1 | 154300 |
| 43,50 | 4 | 359 | 210 | 1 | 154350 |
| 44,00 | 4 | 359 | 210 | 1 | 154400 |
| 44,50 | 4 | 359 | 210 | 1 | 154450 |
| 45,00 | 4 | 359 | 210 | 1 | 154500 |
| 45,50 | 4 | 364 | 215 | 1 | 154550 |
| 46,00 | 4 | 364 | 215 | 1 | 154600 |
| 46,50 | 4 | 364 | 215 | 1 | 154650 |
| 47,00 | 4 | 364 | 215 | 1 | 154700 |
| 47,50 | 4 | 364 | 215 | 1 | 154750 |
| 48,00 | 4 | 369 | 220 | 1 | 154800 |
| 48,50 | 4 | 369 | 220 | 1 | 154850 |
| 49,00 | 4 | 369 | 220 | 1 | 154900 |
| 49,50 | 4 | 369 | 220 | 1 | 154950 |
| 50,00 | 4 | 369 | 220 | 1 | 155000 |
| 50,50 | 4 | 369 | 220 | 1 | 155050 |
| 51,00 | 5 | 412 | 225 | 1 | 155100 |
| 52,00 | 5 | 412 | 225 | 1 | 155200 |
| 53,00 | 5 | 412 | 225 | 1 | 155300 |
| 54,00 | 5 | 417 | 230 | 1 | 155400 |
| 55,00 | 5 | 417 | 230 | 1 | 155500 |
| 56,00 | 5 | 417 | 230 | 1 | 155600 |
| 57,00 | 5 | 422 | 235 | 1 | 155700 |
| 58,00 | 5 | 422 | 235 | 1 | 155800 |
| 59,00 | 5 | 422 | 235 | 1 | 155900 |
| 60,00 | 5 | 422 | 235 | 1 | 156000 |
| 61,00 | 5 | 427 | 240 | 1 | 156100 |
| 62,00 | 5 | 427 | 240 | 1 | 156200 |
| 63,00 | 5 | 427 | 240 | 1 | 156300 |
| 64,00 | 5 | 432 | 245 | 1 | 156400 |
| 65,00 | 5 | 432 | 245 | 1 | 156500 |
| 66,00 | 5 | 432 | 245 | 1 | 156600 |
| 67,00 | 5 | 432 | 245 | 1 | 156700 |
| 68,00 | 5 | 437 | 250 | 1 | 156800 |
| 69,00 | 5 | 437 | 250 | 1 | 156900 |
| 70,00 | 5 | 437 | 250 | 1 | 157000 |
| 71,00 | 5 | 437 | 250 | 1 | 157100 |
| 72,00 | 5 | 442 | 255 | 1 | 157200 |
| 75,00 | 5 | 442 | 255 | 1 | 157500 |
| 78,00 | 6 | 514 | 260 | 1 | 157800 |
| 80,00 | 6 | 519 | 265 | 1 | 158000 |
| 85,00 | 6 | 519 | 265 | 1 | 158500 |
| 90,00 | 6 | 524 | 270 | 1 | 159000 |
| 95,00 | 6 | 529 | 275 | 1 | 159500 |

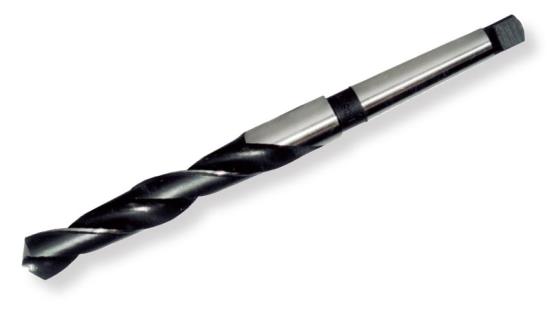

Broca DIN 345N HSS-Co5%
| Ø mm | Cono morse | L1 | L2 | Uds. | Cod. Article |
|---|---|---|---|---|---|
| 10,00 | 1 | 168 | 87 | 1 | 14C1000 |
| 11,00 | 1 | 175 | 94 | 1 | 14C1100 |
| 11,50 | 1 | 175 | 94 | 1 | 14C1150 |
| 12,00 | 1 | 182 | 101 | 1 | 14C1200 |
| 12,50 | 1 | 182 | 101 | 1 | 14C1250 |
| 13,00 | 1 | 182 | 101 | 1 | 14C1300 |
| 13,50 | 1 | 189 | 102 | 1 | 14C1350 |
| 14,00 | 1 | 189 | 102 | 1 | 14C1400 |
| 14,50 | 2 | 212 | 114 | 1 | 14C1450 |
| 15,00 | 2 | 212 | 114 | 1 | 14C1500 |
| 15,50 | 2 | 218 | 120 | 1 | 14C1550 |
| 16,00 | 2 | 218 | 120 | 1 | 14C1600 |
| 16,50 | 2 | 223 | 125 | 1 | 14C1650 |
| 17,00 | 2 | 223 | 125 | 1 | 14C1700 |
| 17,50 | 2 | 228 | 130 | 1 | 14C1750 |
| 18,00 | 2 | 228 | 130 | 1 | 14C1800 |
| 18,50 | 2 | 233 | 135 | 1 | 14C1850 |
| 19,00 | 2 | 233 | 135 | 1 | 14C1900 |
| 19,50 | 2 | 238 | 140 | 1 | 14C1950 |
| 20,00 | 2 | 238 | 140 | 1 | 14C2000 |
| 20,50 | 2 | 243 | 145 | 1 | 14C2050 |
| 21,00 | 2 | 243 | 145 | 1 | 14C2100 |
| 21,50 | 2 | 248 | 150 | 1 | 14C2150 |
| 22,00 | 2 | 248 | 150 | 1 | 14C2200 |
| 22,50 | 2 | 253 | 155 | 1 | 14C2250 |
| 23,00 | 2 | 253 | 155 | 1 | 14C2300 |
| 24,00 | 3 | 281 | 160 | 1 | 14C2400 |
| 25,00 | 3 | 281 | 160 | 1 | 14C2500 |
| 26,00 | 3 | 286 | 165 | 1 | 14C2600 |
| 27,00 | 3 | 291 | 170 | 1 | 14C2700 |
| 28,00 | 3 | 291 | 170 | 1 | 14C2800 |
| 29,00 | 3 | 296 | 175 | 1 | 14C2900 |
| 30,00 | 3 | 296 | 175 | 1 | 14C3000 |
| 31,00 | 3 | 301 | 180 | 1 | 14C3100 |
| 32,00 | 4 | 334 | 185 | 1 | 14C3200 |
| 33,00 | 4 | 334 | 185 | 1 | 14C3300 |
| 34,00 | 4 | 339 | 190 | 1 | 14C3400 |
| 35,00 | 4 | 339 | 190 | 1 | 14C3500 |
| 36,00 | 4 | 344 | 195 | 1 | 14C3600 |
| 37,00 | 4 | 344 | 195 | 1 | 14C3700 |
| 38,00 | 4 | 349 | 200 | 1 | 14C3800 |
| 39,00 | 4 | 349 | 200 | 1 | 14C3900 |
| 40,00 | 4 | 349 | 200 | 1 | 14C4000 |
