Sesatoolswww.sesatools.com

Stainless steel drill bit

Stainless steel drill bit - Progressive

Broca para Inox Progresiva

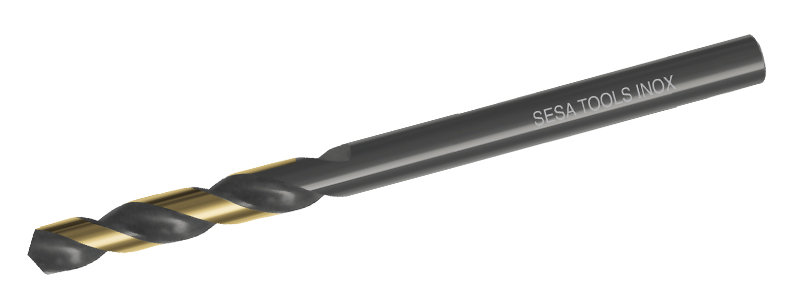

A DIN338 HSS drill bit for stainless steel. M2 quality steel for professional use. A specially sharpened 130° tip and progressive geometry in the diameter of the drill bit. The helix, shorter than those of conventional quick steel bits, ensures the shavings are removed from the stainless steel before clogging. The bit is also highly twist-resistant. It is designed specifically for high-performance and resistance stainless steel.

Esquema Broca inox Inox HSS-G RefDIN 338NMango cilíndricoángulo de héliceHélice Ángulo 30ºPunta Convencional

Petaca

Ø (mm) L1 (mm) L2 (mm) Uds. / Pcs. Cod.
1,00 34 9 10 14P0100 0,86
1,25 38 10 10 14P0125 0,88
1,50 40 11 10 14P0150 0,88
1,75 46 12 10 14P0175 1,05
2,00 49 13 10 14P0200 1,05
2,25 53 14 10 14P0225 1,05
2,50 57 16 10 14P0250

1,05

2,75 61 18 10 14P0275 1,26
3,00 61 18 10 14P0300 1,11
3,25 65 20 10 14P0325 1,55
3,50 70 22 10 14P0350 1,55
3,75 75 25 10 14P0375 1,55
4,00 75 25 10 14P0400 1,46
4,25 80 28 10 14P0425 1,76
4,50 80 28 10 14P0450 1,76
4,75 86 32 10 14P0475 2,11
5,00 86 32 10 14P0500 1,98
5,25 86 32 10 14P0525 2,80
5,50 93 36 10 14P0550 2,80
5,75 93 36 10 14P0575 3,06
6,00 93 36 10 14P0600 2,72
6,25 101 40 10 14P0625 3,48
6,50 101 40 10 14P0650 3,48
6,75 109 45 10 14P0675 3,77
7,00 109 45 10 14P0700 3,79
7,25 109 45 10 14P0725 4,46
7,50 109 45 10 14P0750 4,46
7,75 117 51 10 14P0775 5,46
8,00 117 51 10 14P0800 5,31
8,25 117 51 10 14P0825 6,60
8,50 117 51 10 14P0850 6,60
8,75 125 57 5 14P0875 7,27
9,00 125 57 5 14P0900 7,18
9,25 125 57 5 14P0925 8,02
9,50 125 57 5 14P0950 8,02
9,75 133 63 5 14P0975 8,86
10,00 133 63 5 14P1000 8,55
10,25 133 63 5 14P1025 10,36
10,50 133 63 5 14P1050 10,36
10,75 142 63 5 14P1075 10,76
11,00 142 71 5 14P1100 10,61
11,25 142 71 5 14P1125 11,46
11,50 142 71 5 14P1150 11,46
11,75 142 71 5 14P1175 12,65
12,00 151 78 5 14P1200 12,36
12,25 151 78 5 14P1225 14,18
12,50 151 78 5 14P1250 14,18
12,75 151 78 5 14P1275 15,67
13,00 151 78 5 14P1300 15,76

Blister



Ø (mm) Uds. / Pcs. Cod.
1,00 2 14R0100 1,02
1,25 2 14R0125 1,04
1,50 2 14R0150 1,04
1,75 2 14R0175 1,24
2,00 2 14R0200 1,24
2,25 2 14R0225 1,24
2,50 2 14R0250 1,24
2,75 2 14R0275 1,48
3,00 1 14R0300 1,31
3,25 1 14R0325 1,84
3,50 1 14R0350 1,84
3,75 1 14R0375 1,84
4,00 1 14R0400 1,72
4,25 1 14R0425 2,09
4,50 1 14R0450 2,09
4,75 1 14R0475 2,49
5,00 1 14R0500 2,34
5,25 1 14R0525 3,09
5,50 1 14R0550 3,09
5,75 1 14R0575 3,36
6,00 1 14R0600 2,99
6,25 1 14R0625 3,82
6,50 1 14R0650 3,82
6,75 1 14R0675 4,15
7,00 1 14R0700 4,17
7,25 1 14R0725 4,91
7,50 1 14R0750 4,91
7,75 1 14R0775 6,01
8,00 1 14R0800 5,85
8,25 1 14R0825 7,27
8,50 1 14R0850 7,27
8,75 1 14R0875 7,99
9,00 1 14R0900 7,90
9,25 1 14R0925 8,82
9,50 1 14R0950 8,82
9,75 1 14R0975 9,74
10,00 1 14R1000 8,89
10,25 1 14R1025 10,77
10,50 1 14R1050 10,77
10,75 1 14R1075 11,19
11,00 1 14R1100 11,03
11,25 1 14R1125 11,92
11,50 1 14R1150 11,92
11,75 1 14R1175 13,16
12,00 1 14R1200 12,85
12,25 1 14R1225 14,74
12,50 1 14R1250 14,74
12,75 1 14R1275 16,30
13,00 1 14R1300 16,39
