Sesatoolswww.sesatools.com

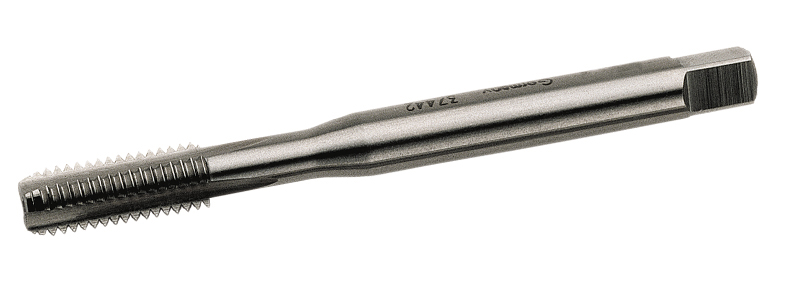

Machine taps

Metric ISO-thread Din 13

A full range of HSSCO machine taps in all types of threads. Taps for different applications, band machine taps, laminated machine taps, coatings, oversized, left-handed……… Check out our range of machine taps in the general price catalogue!

Esquema machos máquinaCaracterísticas machos máquina

D Ø x P(mm) L1 (mm) L2 (mm) D2 (mm) □ (mm) Cod.
M 2,0 x 0,40 45 8 2,8 2,1 3R37416 12,32
M 2,3 x 0,40 45 9 2,8 2,1 3R37418 12,32
M 2,5 x 0,45 50 9 2,8 2,1 3R37422 12,32
M 2,6 x 0,45 50 9 2,8 2,1 3R37424 12,32
M 3,0 x 0,50 56 11 3,5 2,7 3R37426 9,57
M 3,5 x 0,60 56 13 4,0 3,0 3R3748 11,34
M 4,0 x 0,70 63 13 4,5 3,4 3R3740 9,74
M 5,0 x 0,80 70 16 6,0 4,9 3R37434 9,87
M 6,0 x 1,00 80 19 6,0 4,9 3R37438 10,18
M 7,0 x 1,00 80 19 7,0 5,5 3R37440 13,85
M 8,0 x 1,25 90 22 8,0 6,2 3R37442 12,58
M 10,0 x 1,50 100 24 10,0 8,0 3R37446 14,39
