Thread sets

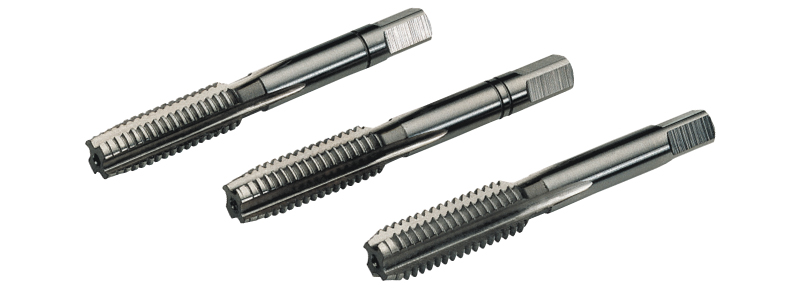

Metric ISO-Thread DIN 13 hand taps
The widest range of metric, fine metric and inch thread tap sets such as GAS, BSW, UNC, UNF…. Available in HSS and HSSCO grades. Check out our range of machine taps in the general price catalogue!
| D | ØxP(mm) | D (mm) | L1 (mm) | L2 (mm) | Uds. / Pcs. | Cod. | |
|---|---|---|---|---|---|---|---|
| M | 1,00 x 0,25 | 32 | 5,5 | 2,5 | 19,34 | 2R27302 | |
| M | 1,10 x 0,25 | 32 | 5,5 | 2,5 | 19,34 | 2R27304 | |
| M | 1,20 x 0,25 | 32 | 5,5 | 2,5 | 19,34 | 2R27306 | |
| M | 1,40 x 0,30 | 32 | 7,0 | 2,5 | 19,34 | 2R27308 | |
| M | 1,60 x 0,35 | 32 | 8,0 | 2,5 | 19,34 | 2R27310 | |
| M | 1,70 x 0,35 | 32 | 8,0 | 2,5 | 19,34 | 2R27312 | |
| M | 1,80 x 0,35 | 32 | 8,0 | 2,5 | 19,34 | 2R27314 | |
| M | 2,00 x 0,40 | 36 | 8,0 | 2,8 | 7,91 | 2R27316 | |
| M | 2,20 x 0,45 | 36 | 9,0 | 2,8 | 7,91 | 2R27318 | |
| M | 2,30 x 0,45 | 36 | 9,0 | 2,8 | 7,91 | 2R27320 | |
| M | 2,50 x 0,45 | 40 | 9,0 | 2,8 | 7,91 | 2R27322 | |
| M | 2,60 x 0,45 | 40 | 9,0 | 3,5 | 7,91 | 2R27324 | |
| M | 3,00 x 0,50 | 40 | 11,0 | 4,0 | 5,21 | 2R27326 | |
| M | 3,50 x 0,60 | 45 | 13,0 | 4,5 | 6,58 | 2R27328 | |
| M | 4,00 x 0,70 | 45 | 13,0 | 6,0 | 4,95 | 2R27330 | |
| M | 4,50 x 0,75 | 50 | 16,0 | 6,0 | 7,38 | 2R27332 | |
| M | 5,00 x 0,80 | 50 | 16,0 | 6,0 | 5,21 | 2R27334 | |
| M | 5,50 x 0,90 | 50 | 18,0 | 6,0 | 11,96 | 2R27336 | |
| M | 6,00 x 1,00 | 50 | 19,0 | 6,0 | 5,21 | 2R27338 | |
| M | 7,00 x 1,00 | 56 | 19,0 | 6,0 | 7,53 | 2R27340 | |
| M | 8,00 x 1,25 | 63 | 22,0 | 6,0 | 5,82 | 2R27342 | |
| M | 9,00 x 1,25 | 70 | 22,0 | 7,0 | 10,32 | 2R27344 | |
| M | 10,00 x 1,50 | 70 | 24,0 | 7,0 | 7,89 | 2R27346 | |
| M | 11,00 x 1,50 | 75 | 24,0 | 8,0 | 13,18 | 2R27348 | |
| M | 12,00 x 1,75 | 80 | 29,0 | 9,0 | 10,33 | 2R27350 | |
| M | 14,00 x 2,00 | 80 | 30,0 | 11,0 | 11,92 | 2R27354 | |
| M | 15,00 x 2,00 | 80 | 32,0 | 12,0 | 12,46 | 2R27356 | |
| M | 16,00 x 2,00 | 95 | 32,0 | 12,0 | 16,78 | 2R27358 | |
| M | 18,00 x 2,50 | 95 | 40,0 | 14,0 | 23,60 | 2R27362 | |
| M | 20,00 x 2,50 | 100 | 40,0 | 16,0 | 25,16 | 2R27366 | |
| M | 22,00 x 2,50 | 110 | 40,0 | 18,0 | 31,45 | 2R27370 | |
| M | 24,00 x 3,00 | 110 | 50,0 | 18,0 | 41,94 | 2R27374 | |
| M | 27,00 x 3,00 | 125 | 50,0 | 20,0 | 52,72 | 2R27376 | |
| M | 30,00 x 3,50 | 125 | 56,0 | 22,0 | 70,96 | 2R27378 | |
| M | 33,00 x 3,50 | 150 | 56,0 | 25,0 | 93,69 | 2R27380 | |
| M | 36,00 x 4,00 | 150 | 63,0 | 28,0 | 117,61 | 2R27382 | |
| M | 39,00 x 4,00 | 150 | 63,0 | 32,0 | 136,14 | 2R27384 | |
| M | 42,00 x 4,50 | 160 | 63,0 | 32,0 | 163,51 | 2R27386 | |
| M | 45,00 x 4,50 | 180 | 70,0 | 36,0 | 187,55 | 2R27388 | |
| M | 48,00 x 5,00 | 180 | 75,0 | 36,0 | 235,21 | 2R27390 | |
| M | 52,00 x 5,00 | 200 | 75,0 | 40,0 | 274,96 | 2R27392 | |
| M | 56,00 x 5,50 | 200 | 85,0 | 45,0 | 359,94 | 2R27394 | |
| M | 60,00 x 5,50 | 220 | 85,0 | 45,0 | 468,14 | 2R27396 | |
| M | 64,00 x 6,00 | 220 | 90,0 | 50,0 | 610,47 | 2R27398 | |
| M | 68,00 x 6,00 | 220 | 90,0 | 50,0 | 715,59 | 2R27399 |
